Task 5 – Get Project Elements with Specific Properties
In this task, you will understand how to retrieve all instance elements that are of category, walls, from all elementGroups within a project. Also, you can request for only the properties of these instances be returned.
- Fetch elements of category walls greater than 10 from all elementGroups in a project and information like id and properties.
- Make sense of the options and fields in the documentation on the elements query, elements object, and Properties object.
You will use the following queries in this task:
Step 1: Request elements matching the specified classification filter
The elementsByProject query returns Elements object, which contains an array of Elements objects.
- For this exercise, we request all elements instances with
- Elements id, name field, and properties.
- Name and value fields in the properties object.
- In AEC Data Model Explorer, the query is populated by default in the Query Pane. You can also edit or update the query as per your requirement and run it.
Query
query GetElementsInProject($projectId: ID!, $propertyFilter: String!) { elementsByProject(projectId: $projectId, filter: {query: $propertyFilter}) { pagination { cursor } results { id name properties( includeReferencesProperties: "Type" filter: {names: ["Family Name", "Element Name", "Element Context", "Fire Rating"]} ) { results { name value displayValue definition { units{ name } } } } } } }Show MoreQuery Variables
- In the Query Variables Pane, replace the value of the
projectIdvariable with the project ID that you used in Navigate to Elementgroups of previous tutorial. - In the Query Variables Pane, replace the value of the
propertyFilterwith the property filter of your choice. For ease of understanding, here we have filtered elements that are walls with a Fire Rating.
Note: To know the list of supported metadata filtering options, refer to the Advanced Filtering Capabilities page.
{ "projectId": "urn:adsk.workspace:prod.project:39208068-e548-4d9e-b8a7-e000fdf2a9b4", "propertyFilter": "'property.name.Family Name'=='Basic Wall' and property.name.Length > 10 and 'property.name.Element Context'==Instance" } - In the Query Variables Pane, replace the value of the
- Click Play. The list of elements available within that elementGroup of property ‘family’ and value ‘“Basic Wall” is displayed in the response. The response should be similar to the following code-block:
Note: The following code is a subset data of complete response, hence do not use this as reference.
Response
{ "data": { "elementsByProject": { "pagination": { "cursor": "YWRjdXJzfjB-NTB-NTA" }, "results": [ { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ340VFVtRnF0WFJVVy1CS09Gb1cyd3FRXzE4NTI4MQ", "name": "Generic - 200mm", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 200mm", "displayValue": "Generic - 200mm", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ340VFVtRnF0WFJVVy1CS09Gb1cyd3FRXzE4NTI4Mg", "name": "Generic - 200mm", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 200mm", "displayValue": "Generic - 200mm", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ340VFVtRnF0WFJVVy1CS09Gb1cyd3FRXzE4NTI4Mw", "name": "Generic - 200mm", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 200mm", "displayValue": "Generic - 200mm", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ340VFVtRnF0WFJVVy1CS09Gb1cyd3FRXzE4NTI4NA", "name": "Generic - 200mm", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 200mm", "displayValue": "Generic - 200mm", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35Mdm9zVEo1N1JYZWZOWTFiYWNoUVRRXzExNjJiYw", "name": "Retaining - 12\" Concrete", "properties": { "results": [ { "name": "Element Name", "value": "Retaining - 12\" Concrete", "displayValue": "Retaining - 12\" Concrete", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35Mdm9zVEo1N1JYZWZOWTFiYWNoUVRRXzExNjJiZA", "name": "Retaining - 12\" Concrete", "properties": { "results": [ { "name": "Element Name", "value": "Retaining - 12\" Concrete", "displayValue": "Retaining - 12\" Concrete", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35Mdm9zVEo1N1JYZWZOWTFiYWNoUVRRXzEzNGM2Nw", "name": "Foundation - 24\" Concrete", "properties": { "results": [ { "name": "Element Name", "value": "Foundation - 24\" Concrete", "displayValue": "Foundation - 24\" Concrete", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": "4 HR", "displayValue": "4 HR", "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35Mdm9zVEo1N1JYZWZOWTFiYWNoUVRRXzEzNTYzNQ", "name": "Foundation - 24\" Concrete", "properties": { "results": [ { "name": "Element Name", "value": "Foundation - 24\" Concrete", "displayValue": "Foundation - 24\" Concrete", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": "4 HR", "displayValue": "4 HR", "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35Mdm9zVEo1N1JYZWZOWTFiYWNoUVRRXzEzNTYzNg", "name": "Foundation - 24\" Concrete", "properties": { "results": [ { "name": "Element Name", "value": "Foundation - 24\" Concrete", "displayValue": "Foundation - 24\" Concrete", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": "4 HR", "displayValue": "4 HR", "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35Mdm9zVEo1N1JYZWZOWTFiYWNoUVRRXzEzNTcxMg", "name": "Foundation - 24\" Concrete", "properties": { "results": [ { "name": "Element Name", "value": "Foundation - 24\" Concrete", "displayValue": "Foundation - 24\" Concrete", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": "4 HR", "displayValue": "4 HR", "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35Mdm9zVEo1N1JYZWZOWTFiYWNoUVRRXzEzNTcxMw", "name": "Foundation - 24\" Concrete", "properties": { "results": [ { "name": "Element Name", "value": "Foundation - 24\" Concrete", "displayValue": "Foundation - 24\" Concrete", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": "4 HR", "displayValue": "4 HR", "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35Mdm9zVEo1N1JYZWZOWTFiYWNoUVRRXzEzNTcxNA", "name": "Foundation - 24\" Concrete", "properties": { "results": [ { "name": "Element Name", "value": "Foundation - 24\" Concrete", "displayValue": "Foundation - 24\" Concrete", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": "4 HR", "displayValue": "4 HR", "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35Mdm9zVEo1N1JYZWZOWTFiYWNoUVRRXzEzNTcxNQ", "name": "Foundation - 24\" Concrete", "properties": { "results": [ { "name": "Element Name", "value": "Foundation - 24\" Concrete", "displayValue": "Foundation - 24\" Concrete", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": "4 HR", "displayValue": "4 HR", "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35Mdm9zVEo1N1JYZWZOWTFiYWNoUVRRXzEzNTcxNw", "name": "Foundation - 24\" Concrete", "properties": { "results": [ { "name": "Element Name", "value": "Foundation - 24\" Concrete", "displayValue": "Foundation - 24\" Concrete", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": "4 HR", "displayValue": "4 HR", "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35fR1IzdHpORlI3LV9tclFBOGR4TWN3XzE4NGNkMg", "name": "Proposed Partition 4\"", "properties": { "results": [ { "name": "Element Name", "value": "Proposed Partition 4\"", "displayValue": "Proposed Partition 4\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEwNTc3ZQ", "name": "Block 39 - L2 Entablature", "properties": { "results": [ { "name": "Element Name", "value": "Block 39 - L2 Entablature", "displayValue": "Block 39 - L2 Entablature", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEwNTg3Yg", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEwNTkwZA", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEwNjk1Zg", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEwNjk4OQ", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEyZmI5Zg", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEyZmJiNQ", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEyZmJjNQ", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEyZmMwMQ", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEyZmMxOA", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEyZmMyYQ", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEyZmM0Nw", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEyZmM2YQ", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEyZmM4Yg", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEyZmZmNQ", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEzMDBlZg", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEzMDFiYw", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzEzMDRmNA", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDI5", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDJh", "name": "Generic - 6\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 6\"", "displayValue": "Generic - 6\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDJi", "name": "Generic - 6\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 6\"", "displayValue": "Generic - 6\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDJj", "name": "Block 43", "properties": { "results": [ { "name": "Element Name", "value": "Block 43", "displayValue": "Block 43", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDJk", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDJl", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDJm", "name": "Generic - 12\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 12\"", "displayValue": "Generic - 12\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDMx", "name": "Block 37", "properties": { "results": [ { "name": "Element Name", "value": "Block 37", "displayValue": "Block 37", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDMy", "name": "Block 37", "properties": { "results": [ { "name": "Element Name", "value": "Block 37", "displayValue": "Block 37", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDM2", "name": "Generic - 10\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 10\"", "displayValue": "Generic - 10\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDQx", "name": "Generic - 10\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 10\"", "displayValue": "Generic - 10\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDQ0", "name": "Generic - 10\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 10\"", "displayValue": "Generic - 10\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDQ3", "name": "Generic - 10\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 10\"", "displayValue": "Generic - 10\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDRh", "name": "Generic - 10\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 10\"", "displayValue": "Generic - 10\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDRk", "name": "Generic - 10\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 10\"", "displayValue": "Generic - 10\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDUw", "name": "Generic - 10\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 10\"", "displayValue": "Generic - 10\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } }, { "id": "YWVjZX42SUpGQXdONExWTG5JZXZiQk5GNU1IX0wyQ35mV0R1ZkIteVNtcTVGd242RmoxXy1nXzkwZDc3", "name": "Generic - 10\"", "properties": { "results": [ { "name": "Element Name", "value": "Generic - 10\"", "displayValue": "Generic - 10\"", "definition": { "units": null } }, { "name": "Family Name", "value": "Basic Wall", "displayValue": "Basic Wall", "definition": { "units": null } }, { "name": "Element Context", "value": "Instance", "displayValue": "Instance", "definition": { "units": null } }, { "name": "Fire Rating", "value": null, "displayValue": null, "definition": { "units": null } } ] } } ] } } }Show More

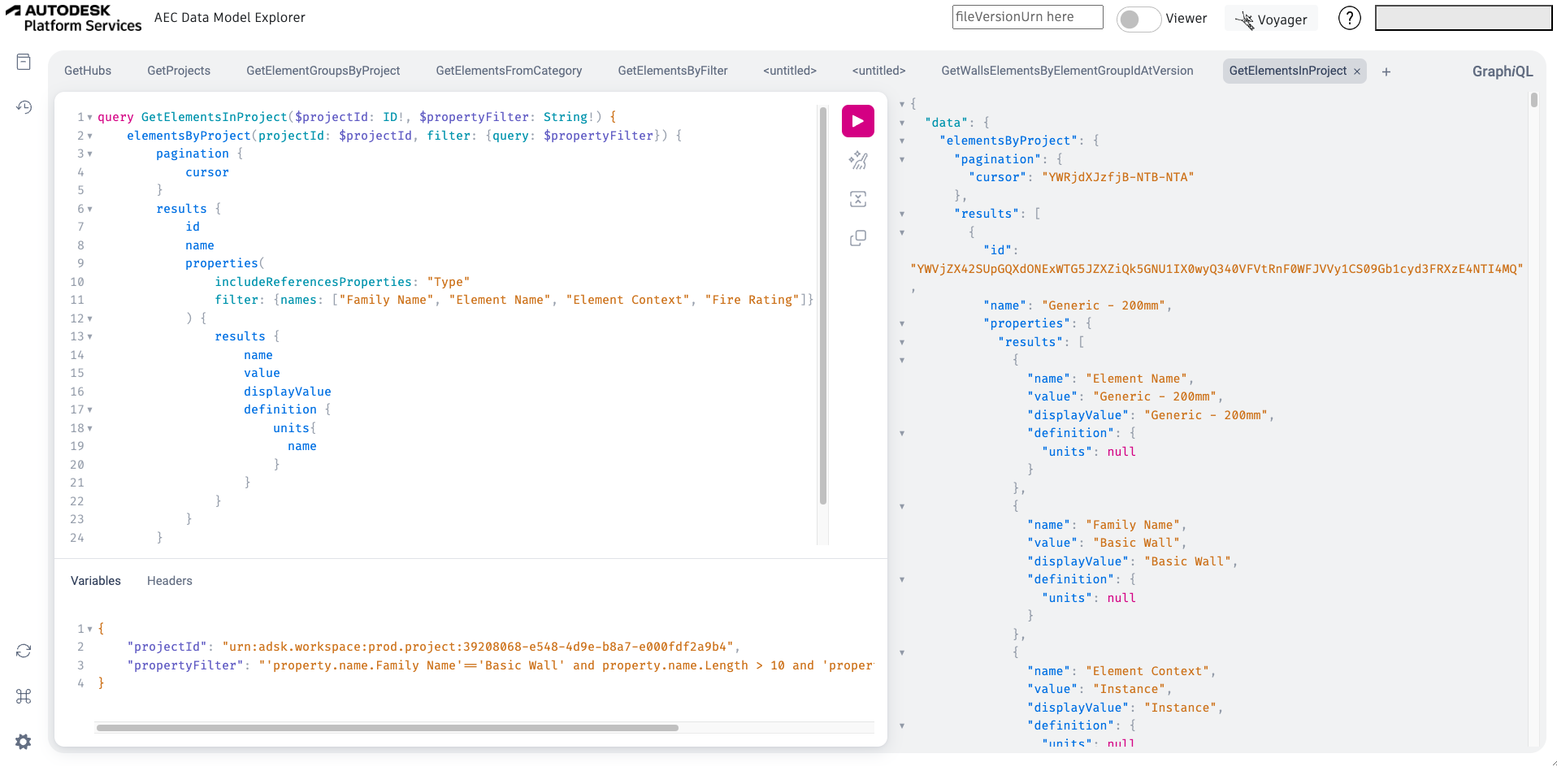

After working through the steps mentioned above, your Explorer should look similar to the following image:
