Access Exchange Container
This tutorial will allow you to use Data Management API to identify the item corresponding to the exchange container, and use the information from the item to get the exchange container using Data Exchange API:
Intro
When an exchange is created within Autodesk Construction Cloud, it
appears of the items type, benefiting from versioning and bearing
the same information as any other item. The only difference between an
item of type items:autodesk.bim360:File corresponding to (for
example) a Revit file, and items:autodesk.bim360:FDX specific to an
exchange, is that the former (as its type states) is a file that can be
downloaded, while an exchange is rather a pointer to the exchange
container which holds the exchange data.
Workflow explanation
When an exchange is created from a source file (e.g., Revit file), an
item of type items:autodesk.bim360:FDX is created in the same
project where the source file is located. The newly created item is a
pointer to the exchange container, and the id of this very item
allows you, using Data Exchange API, to retrieve the exchange container.
Thus, to get the exchange container, you need the corresponding item located in the same hub and project as the source file. This can be achieved using Data Management API, having the workflow that can be resumed to the following steps:
- Get the Hub ID where the source file is located;
- Identify the Project ID where the source file resides;
- Identify the parent Folder ID of the exchange item;
- Show the content of the folder and identify the needed item;
- Get the Collection ID where the exchange container resides using Get collections API;
- Use Data Exchange API to get the exchange container having the needed Item ID.
1. Get the Hub ID where the source file is located
To get the Hub ID, use the
GET https://developer.api.autodesk.com/project/v1/hubs call, and
apply a token with the data:read scope.
For example:
curl 'https://developer.api.autodesk.com/project/v1/hubs' \
--header 'Authorization: Bearer '$TOKEN
where TOKEN is the env variable holding your access token.
The above call gives you a response similar to the following:
{
...
"data": [
{
"type": "hubs",
"id": "b.5c07c84c-bbd9-476e-8712-547f74c5b76b",
"attributes": {
"name": "Some Account",
...
}
}
]
}
In this response payload, you are interested in the id of the needed
hub.
Note that certain apps can be provisioned in multiple accounts. Such, after retrieving the hubs, it’s important to make sure the needed Hub ID is identified from the list of accessible hubs.
2. Identify the Project ID where the source file resides
Having the Hub ID, you can now retrieve the list of projects available on that hub by calling this command:
curl 'https://developer.api.autodesk.com/project/v1/hubs/'$HUB_ID'/projects' \
--header 'Authorization: Bearer '$TOKEN
where HUB_ID is the ID in the form of
b.5c07c84c-bbd9-476e-8712-547f74c5b76b.
The above call gives you a response similar to the following:
{
...
"data": [
{
"type": "projects",
"id": "b.c8d3cf2c-4b31-48ba-9454-06645929876c",
"attributes": {
"name": "some_project",
...
"extension": {
"type": "projects:autodesk.bim360:Project",
...
"data": {
"projectType": "ACC"
}
}
},
...
}
]
}
In this response payload, you are interested in the id of the needed
project.
3. Identify the parent Folder ID of the source file
Having the Project ID, you have to get the top folders, out of which you are interested in Project Files, by calling this command:
curl 'https://developer.api.autodesk.com/project/v1/hubs/'$HUB_ID'/projects/'$PROJECT_ID'/topFolders' \
--header 'Authorization: Bearer '$TOKEN
This creates an output similar to the following:
{
...
"data": [
{
"type": "folders",
"id": "urn:adsk.wipprod:fs.folder:co.rzxjppPYRsmNydaxgykFBg",
"attributes": {
"name": "Project Files",
"displayName": "Project Files",
...
},
...
},
...
]
}
In this response payload, you are interested in the id of the
Project Files top folder.
4. Show the content of the folder and identify the needed item
Having the top folder ID readily available, the way to get to the needed folder depends on how the folders are organized and how deep the needed folder is placed inside the folder structure. Nevertheless, it resumes to retrieving iteratively, starting with a top folder and followed by its contents, until reaching the desired folder with the needed contents.
All of these iterative calls have the format like the following:
curl 'https://developer.api.autodesk.com/data/v1/projects/'$PROJECT_ID'/folders/'$FOLDER_ID'/contents' \
--header 'Authorization: Bearer '$TOKEN
ultimately providing the content of the folder where the item referencing the needed exchange resides:
{
...
"data": [
{
"type": "items",
"id": "urn: adsk.wipprod:dm.lineage:8nBh35NARrWeJ2AiTwcI1A",
"attributes": {
"displayName": "House.rvt",
...
"extension": {
"type": "items:autodesk.bim360:File",
...
}},},
{
"type": "items",
"id": "urn: adsk.wipprod:dm.lineage:EoMIYJ3USSC5lI3lWRG46Q",
"attributes": {
"displayName": "House Walls - FDX",
...
"extension": {
"type": "items:autodesk.bim360:FDX",
...
}
},
...
}]
}
The item pointing to the needed exchange can be identified based on the
name given to the exchange, but first, make sure that its
attributes.extension.type is set to items:autodesk.bim360:FDX.
5. Get the Collection ID where the exchange container resides using Get collections API
Having retrieved the Project ID, you can call the GET collections API to get the collection ID from the response
curl 'https://developer.api.autodesk.com/exchange/v1/collections?filters=attribute.projectId=='$PROJECT_ID \
--header 'Authorization: Bearer '$TOKEN \
--header 'region: Bearer '$REGION
where REGION is the env variable holding your region.
The above call gives you a response with Collection ID in it:
{
"id": "bGuMcMQAsqdeIF4Peq1EaE_L2C",
}
6. Use Data Exchange API to get the exchange container having the needed Item ID
Having the needed item, its ID allows you to get the exchange container using the Data Exchange API by calling this command:
curl 'https://developer.api.autodesk.com/exchange/v1/exchanges?filters=attribute.exchangeFileUrn=='$ITEM_ID \
--header 'Authorization: Bearer '$TOKEN
where ITEM_ID is the item ID of items:autodesk.bim360:FDX type.
The above call returns an output (trimmed for brevity) similar to the following:
{
...
"results": [
{
...
"id": "cad99e7f-4294-35de-96e5-c9b7a8bc332c",
"collection": {
"id": "co.cjm3cQPdRBGKft6IWqTDdQ"
},
"type": "autodesk.fdx.space:exchangecontainer-1.0.0",
"attributes": {
"id": "cad99e7f-4294-35de-96e5-c9b7a8bc332c",
"url": "/exchanges/cad99e7f-4294-35de-96e5-c9b7a8bc332c/attributes",
"data": [
...
{
"name": "baseSourceVersionUrn",
"value": "urn:adsk.wipstg:fs.file:vf.8nBh35NARrWeJ2AiTwcI1A?version=1",
"type": "",
"category": "system"
},
{
"name": "exchangeFileName",
"value": "House Walls - FDX",
"type": "",
"category": "system"
},
{
"name": "exchangeFileUrn",
"value": "urn:adsk.wipstg:dm.lineage:EoMIYJ3USSC5lI3lWRG46Q",
"type": "",
"category": "system"
}
...
]
},
"components": {
"id": "cad99e7f-4294-35de-96e5-c9b7a8bc332c",
"url": "/exchanges/cad99e7f-4294-35de-96e5-c9b7a8bc332c/components",
"data": {
"insert": {
"autodesk.fdx:contract.revitViewGeometry-1.0.0": {
"contract": {
"String": {
"viewName": "House Walls",
"viewableId": "b57244e2-7d70-4703-9cce-7a12a2088f7c-0010d509",
"viewGuid": "c05a4777-0bde-778b-6796-6dc299a25589"
}
}
},
"autodesk.fdx:host.acc-1.0.0": {
"host": {
"String": {
"versionUrn": "urn:adsk.wipstg:fs.file:vf.EoMIYJ3USSC5lI3lWRG46Q?version=1",
"fileName": "House Walls - FDX",
"folderUrn": "urn:adsk.wipstg:fs.folder:co.dJszZEJGQCylUeMqYcnOPA",
"projectUrn": "b.c8d3cf2c-4b31-48ba-9454-06645929876c",
"fileUrn": "urn:adsk.wipstg:dm.lineage:EoMIYJ3USSC5lI3lWRG46Q"
}
}
},
"autodesk.fdx:source.acc-1.0.0": {
"source": {
"String": {
"sourceId": "c7006ecd-d76c-3ad1-9afc-963d8232708b",
"versionUrn": "urn:adsk.wipstg:fs.file:vf.8nBh35NARrWeJ2AiTwcI1A?version=1",
"folderUrn": "urn:adsk.wipstg:fs.folder:co.dJszZEJGQCylUeMqYcnOPA",
"projectUrn": "b.c8d3cf2c-4b31-48ba-9454-06645929876c",
"fileUrn": "urn:adsk.wipstg:dm.lineage:8nBh35NARrWeJ2AiTwcI1A"
}
}
}
}
}
},
"revisionId": "1640198347910_c9c0fa50-195f-39d9-a1e5-53dda9648033"
}
]
}
From this payload, to further use Data Exchange API, you would require these two elements:
Exchange ID- the ID of this exchange container. It can be found underresults[0].id(since we have just one element in the results), and in the above example, it’scad99e7f-4294-35de-96e5-c9b7a8bc332c;Collection ID- the ID of the collection where the exchange data is stored. It can be found underresults[0].collection.id, and in the above example, its value isco.cjm3cQPdRBGKft6IWqTDdQ.
These two elements are essential because all subsequent calls made
through Data Exchange API will contain the path
v1/collections/{collectionId}/exchanges/{exchangeId}/ plus the
specific endpoints to retrieve assets, relationships, snapshots, etc.
However, the rest of the received payload also contains a lot of useful information, such as the following:
- The type of the exchange container is set to
autodesk.fdx.space:exchangecontainer-1.0.0, which indicates that it’s a Space type item and should contain at leastattributesandcomponents. attributesare system-specific properties, but can and should be used to filter the item.In the above call, the
filters=attribute.exchangeFileUrn=='$ITEM_IDquery string was used to identify the exchange container byexchangeFileUrnattribute.componentsare more complex schema-based properties. In the above payloads, you can notice that it contains three properties like the following:autodesk.fdx:source.acc-1.0.0, holding the information about the URN, version, and location of the source file used to create the exchange.autodesk.fdx:contract.revitViewGeometry-1.0.0, holding the data regarding the exchange contract - in this case, it’s the name and ID of the view within the source file used to create the exchange.autodesk.fdx:host.acc-1.0.0, holding the data regarding the name, ID, and location of the item pointing to the current exchange container.
NOTE: For now, only filtering by
exchangeFileUrnandsourceFileUrnattributes is allowed, but later, it might be extended to all attributes and components.Using the
sourceFileUrnas a filter allows creating workflows around cases like “Give me all exchanges created using this Revit file”. For example, having the URN of a Revit file, we can make this call:curl 'https://developer.api.autodesk.com/exchange/v1/exchanges? filters=sourceFileUrn=='$REVIT_FILE_URN \ --header 'Authorization: Bearer '$TOKENand expect an output like the following:
{ ... "results": [ { ... "id": "d0e29dc8-0526-3e99-a251-ddaef35d47da", "attributes": {...}, "components": { ... "data": { "insert": { "autodesk.fdx:contract.revitViewGeometry-1.0.0": { "contract": { "String": { "viewName": "SHARE - Stairs - Central", ...}}}, "autodesk.fdx:host.acc-1.0.0": { "host": { "String": { "fileName": "StairsReview" ...}}}, "autodesk.fdx:source.acc-1.0.0": {...} }}}}, { ... "id": "1b4cc82e-4854-3797-8ad9-121bde35ec8f", "attributes": {...}, "components": { ... "data": { "insert": { "autodesk.fdx:contract.revitViewGeometry-1.0.0": { "contract": { "String": { "viewName": "SHARE - Stairs - South 132", ...}}}, "autodesk.fdx:host.acc-1.0.0": { "host": { "String": { "fileName": "SHARE - Stairs - South 132", ...}}}, "autodesk.fdx:source.acc-1.0.0": {...} }}}}, { ... "id": "32836593-b66f-3d83-8f0d-4c0332d6294b", "attributes": {...}, "components": { ... "data": { "insert": { "autodesk.fdx:contract.revitViewGeometry-1.0.0": { "contract": { "String": { "viewName": "SHARE - Canopy - Entry", ...}}}, "autodesk.fdx:host.acc-1.0.0": { "host": { "String": { "fileName": "SHARE - Canopy - Entry", ...}}}, "autodesk.fdx:source.acc-1.0.0": {...} }}}} ] }Show Morefrom which we can notice that there are three data exchanges created using the Revit file as the source file, and in the above payload, we can also see from which view each data exchange was created.
Permissions

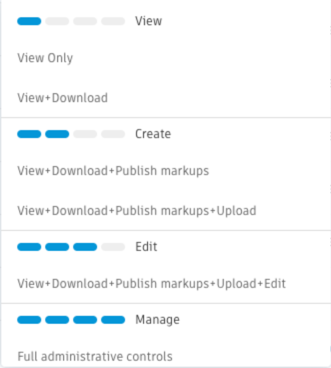

For creating an exchange or accessing the exchange data, user requires the following permissions:
- User should have at least
View+Downloadpermission on the Source Revit file to create an exchange from the source Revit file; - User should have at least
View+Downloadpermission on the Exchange file to download the exchange data; - User should have at least
Create->(View+Download+Publish-markups+Upload)permission on a folder to create exchange into that folder.
Samples illustrating use of calls discussed in this tutorial can be found here
In the next tutorial, you will see how to use the exchange container data to get the list of assets, relationships, snapshots, and revisions.
